# 5. Mining Protocol
The Mining Protocol enables the distribution of work to mining devices and the submission of proof-of-work results.
It can be used without Job Declaration and Template Distribution Protocols, where a subset of the messages are used by a pool to unilaterally distribute work to miners.
Alternatively, it can be used in conjunction with Job Declaration and Template Distribution Protocols, where both pool and miners coordinate to decide what is valid work.
# 5.1 Job
A Job consists of a unit of work containing all the necessary information about the hashing space over some candidate block header.
Each Mining Device has to work on a unique part of the whole search space. The full search space is defined in part by valid values in the following block header fields:
nonceheader field (32 bits)versionheader field (16 bits, as specified by BIP 320 (opens new window))nTimeheader field (32 bits timestamp, limited underMAX_FUTURE_BLOCK_TIME(opens new window))
The other portion of the block header that is used to define the full search space is the Merkle Root, which is deterministically computed from:
- Coinbase transaction
- Transaction set
All roles in Stratum v2 MUST NOT use transaction selection/ordering for additional hash space extension. This stems both from the concept that miners/pools should be able to choose their transaction set freely without any interference with the protocol, and also to enable future protocol modifications to Bitcoin. In other words, any rules imposed on transaction selection/ordering by miners not described in the rest of this document may result in invalid work.
Mining servers MUST assign a unique subset of the search space to each mining device, otherwise the mining devices will waste energy with overlapping search.
This protocol explicitly expects that upstream server software is able to manage the size of the hashing space correctly for its clients and can provide new and unique Jobs quickly enough, based on the hashpower of each client.
The protocol defines two main types of Jobs: Standard Job and Extended Job.
This separation vastly simplifies the protocol implementation for clients that don’t support Extended Job, as they only need to implement the subset of protocol messages related to Standard Job (see Mining Protocol Messages for details).
Additionally, a Job (either Standard or Extended) also could be potentially labeled as a Future Job and/or Custom Job.
# 5.1.1 Standard Job
Standard Jobs are restricted to fixed Merkle Roots, where the only modifiable bits are under the version, nonce, and nTime fields of the block header.
We call this header-only mining (HOM), and it is the smallest assignable unit of search space by the protocol.
The size of the search space for one Standard Job, given a fixed nTime field, is 2^(NONCE_BITS + BIP320_VERSION_ROLLING_BITS) = ~280Th, where NONCE_BITS = 32 and BIP320_VERSION_ROLLING_BITS = 16.
This is a guaranteed space before nTime rolling (or changing the Merkle Root by sending a new Job).
Standard Jobs are distributed via the NewMiningJob message, which can ONLY be sent via Standard Channels.
Note that Mining Devices with hashrate above 280 TH/s will outrun the true time when rolling the nTime field. This is not necessarily a problem, as long as the Job remains valid within the limits defined by the MAX_FUTURE_BLOCK_TIME constant of the Bitcoin protocol (2 hours).
Depending on the hashrate of the Mining Device, it must receive new Standard Jobs (with a different Merkle Root) frequently enough in order to avoid rolling nTime too much ahead of the true time (which could result in rejected work).
# 5.1.2 Extended Job
Extended Jobs allow rolling Merkle Roots, giving extensive control over the search space so that they can implement various advanced use cases such as:
- translation between Sv1 and Sv2 protocols
- difficulty aggregation
- search space splitting
Extended Jobs are distributed via the NewExtendedMiningJob message, which can be sent via:
# 5.1.2.1 Extended Extranonce
Downstream and Upstream are relative terms. There could theoretically be multiple nested layers of Stratum Nodes (e.g.: Proxies) between a Work-Providing Node and a Mining Device.

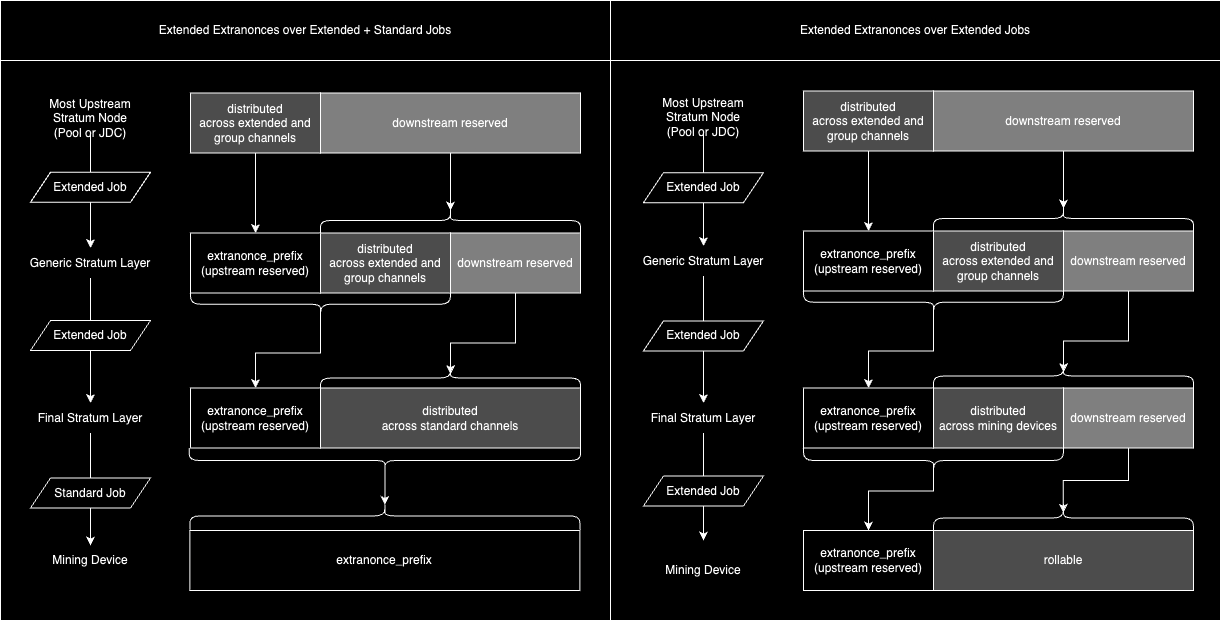

So the protocol establishes the notion of Extended Extranonce, which is a fundamental component of Extended Jobs.
The Extended Extranonce is an array of bytes, split into three different areas:
- The
extranonce_prefixbytes are reserved for the upstream layer, where fixed bytes were already established for the Extranonce and are no longer available for rolling or search space splitting. - The locally reserved bytes is where the local layer will assign unique values for its own downstream clients, according to their hashpower.
- The downstream reserved bytes is where the downstream clients will further distribute the search space, or use for rolling (if they are Mining Devices).

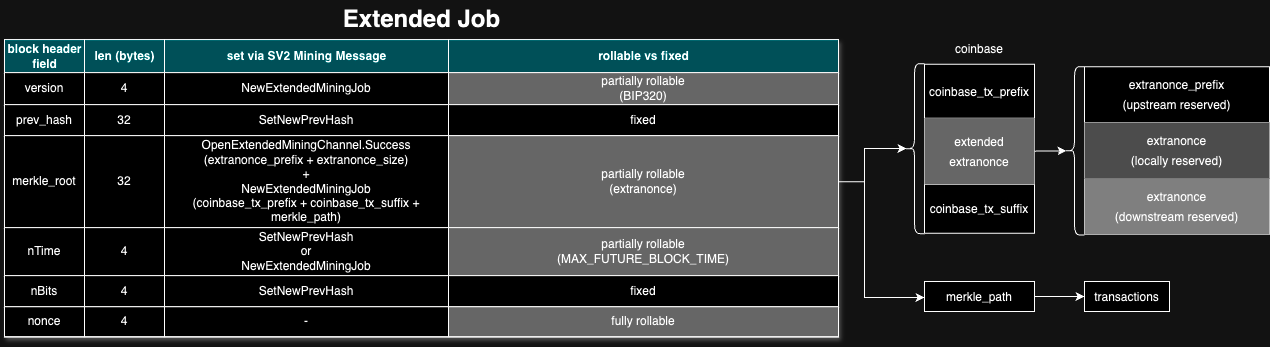

In order to calculate the Merkle Root, an Extended Job carries the following data:
merkle_pathcoinbase_tx_prefixcoinbase_tx_suffix
An Extended Channel has the following properties:
extranonce_prefix: the Extended Extranonce bytes that were already allocated by the upstream server.extranonce_size: how many bytes are available for the locally reserved and downstream reserved areas of the Extended Extranonce.
And a Standard Channel has the following property:
extranonce_prefixthe Extended Extranonce bytes that were already allocated by the upstream server.
So when some layer receives an Extended Job, it could either:
- propagate it as an Extended Job to a downstream Extended or Group Channel (via
NewExtendedMiningJobnotification), where the Extended Extranonce will be further split. - convert it into multiple Standard Job notifications (
NewMiningJob), where each downstream Standard Channel'sextranonce_prefixis combined withcoinbase_tx_prefix+coinbase_tx_suffix.
For conversion into Standard Jobs, the Coinbase Transaction is constructed by concatenating these fields in this specific order: coinbase_tx_prefix + extranonce_prefix + coinbase_tx_suffix.
The Coinbase Transaction is then combined with the merkle_path of the Extended Job to calculate the merkle_root for the Standard Job notification (NewMiningJob). Since Standard Jobs are HOM, there's no extranonce_size field on the Standard Job notification.
# 5.1.3 Future Job
A Job with an empty template or speculated non-empty template can be sent in advance to speedup Job distribution when a new block is found on the network.
The mining server MAY have precomputed such a Job and is able to pre-distribute it for all active Channels.
The only missing information to start to mine on the new block is the new prev_hash.
This information can be provided independently.
Such an approach improves the efficiency of the protocol where the upstream node does not waste precious time immediately after a new block is found in the network.
The trade-off here is that a non-empty Future Job could potentially contain a transaction that was already included in the block that was just propagated on the network, which would lead to an invalid block if successfully mined.
So mining servers that provide non-empty Future Jobs SHOULD:
- never send a
SetNewPrevHashfor a Future Job that was later found to contain a conflicting transaction. - minimize the probability of Future Jobs containing conflicting transactions (which leads to Future Jobs carrying less profitable templates).
- after a
SetNewPrevHashis propagated for a Future Job, provide a non-Future Job for this sameprev_hashas fast as possible (with a more profitable template).
# 5.1.4 Custom Job
A Custom Job contains a set of transactions that were chosen by the miner instead of being unilaterally imposed by the Pool.
Under the Job Declaration Protocol, upon request the Job Declarator Server (JDS) sends a mining_job_token to the Job Declarator Client.
This mining_job_token is used by JDC for:
- declaring a Custom Job to JDS (via
DeclareMiningJobmessage of Job Declaration Protocol) - notifying Pool about a Custom Job (via
SetCustomMiningJobmessage of Mining Protocol)
This is a key feature of Stratum V2 that improves Bitcoin decentralization. Please see Job Declaration Protocol for more details.
# 5.2 Channel
The Mining Protocol is designed such that downstream Mining Devices open Channels with upstream Stratum Nodes within established Connections. These upstream Stratum Nodes could be actual Work-Providing Nodes (e.g.: Pool, or Job Declarator Client) or simply Proxies that relay messages forward.
Each Channel identifies a dedicated mining session associated with an authorized user. Upstream stratum nodes accept work submissions and specify a mining target on a per-channel basis.
There can theoretically be up to 2^32 open Channels within one Connection. This is however just a theoretical ceiling, and it does not mean that every Connection will be able to fill this full capacity (maybe the search space has already been narrowed).
All Channels are independent of each other, but share some messages broadcast from the server for higher efficiency (e.g. information about a new prev_hash).
Each Channel is identified by its channel_id (U32), which is consistent throughout the whole life of the Connection. There MUST NOT be two Channels with the same ID in the same Connection.
A Proxy can either transparently allow its clients to open separate Channels with the server (preferred behavior), or aggregate open connections from downstream devices into its own open channel with the server and translate the messages accordingly (present mainly for allowing v1 proxies). Both options have some practical use cases. In either case, proxies SHOULD aggregate clients' Channels into a smaller number of Connections. This saves network traffic for broadcast messages sent by a server because fewer messages need to be sent in total, which leads to lower latencies as a result. And it further increases efficiency by allowing larger packets to be sent.
The protocol defines three types of Channels: Standard Channel, Extended Channel and Group Channel, which are useful for different purposes.
# 5.2.1 Standard Channel
Standard Channels are created by end Mining Devices.
When an end Mining Device opens a Standard Channel with an upstream, it is restricted to Standard Jobs (via REQUIRES_STANDARD_JOBS bit flag of SetupConnection message).
However, a Proxy could also transparently relay the Standard Channels from the downstream Mining Devices into new upstream Connections. In this case, the REQUIRES_STANDARD_JOBS bit flag will not be set for the SetupConnection message. This indicates that on this Connection, the Standard Channels can be assembled into a Group Channel and receive Extended Jobs for efficient distribution downstream.
Then, the Connections between the Proxy and Mining Devices will receive Standard Jobs that were efficiently distributed from the Extended Jobs. The Merkle Root of each Standard Job is calculated by the Proxy, taking in consideration the extranonce_prefix that was assigned to each Standard Channel, plus the coinbase_tx_prefix and the coinbase_tx_suffix that were sent on the Extended Job. No extranonce field is used in this scenario.
# 5.2.2 Extended Channel
Extended Channels are intended to be used by Proxies for a more efficient distribution of hashing space.
An Extended Channel carries the following properties:
extranonce_prefix: the Extended Extranonce bytes that were already allocated by the upstream server.extranonce_size: how many bytes are available for the locally reserved and downstream reserved areas of the Extended Extranonce.
Upstream servers which accept connections and provide work MUST support Extended Channels. Clients, on the other hand, do not have to support Extended Channels, as they MAY be implemented more simply with only Standard Channels at the end-device level. Thus, upstream servers providing work MUST also support Standard Channels.
The size of search space for an Extended Channel is 2^(nonce_bits + version_rolling_bits + extranonce_size*8) per nTime value.
# 5.2.3 Group Channel
Standard channels opened within one particular connection can be grouped together to be addressable by a common communication group channel.
Whenever a Standard Channel is created, it is always put into some Group Channel identified by its group_channel_id.
Group Channel ID namespace is the same as Standard Channel ID namespace on a particular connection.
# 5.3 Mining Protocol Messages
# 5.3.1 SetupConnection Flags for Mining Protocol
Flags usable in SetupConnection.flags and SetupConnection.Error::flags, where bit 0 is the least significant bit of the u32 type:
| Flag Name | Bit | Description |
|---|---|---|
| REQUIRES_STANDARD_JOBS | 0 | The downstream node requires standard jobs. It does not understand group channels - |
| it is unable to process extended jobs sent to standard channels through a group | ||
| channel. | ||
| REQUIRES_WORK_SELECTION | 1 | If set to 1, the client notifies the server that it will send SetCustomMiningJob on |
| this connection | ||
| REQUIRES_VERSION_ROLLING | 2 | The client requires version rolling for efficiency or correct operation and the |
| server MUST NOT send jobs which do not allow version rolling |
Flags usable in SetupConnection.Success.flags:
| Flag Name | Bit | Description |
|---|---|---|
| REQUIRES_FIXED_VERSION | 0 | Upstream node will not accept any changes to the version field. Note that if |
| REQUIRES_VERSION_ROLLING was set in the SetupConnection::flags field, this bit | ||
| MUST NOT be set. Further, if this bit is set, extended jobs MUST NOT indicate | ||
| support for version rolling. | ||
| REQUIRES_EXTENDED_CHANNELS | 1 | Upstream node will not accept opening of a standard channel |
# 5.3.2 OpenStandardMiningChannel (Client -> Server)
This message requests to open a standard channel to the upstream node.
After receiving a SetupConnection.Success message, the client SHOULD respond by opening channels on the connection.
If no channels are opened within a reasonable period the server SHOULD close the connection for inactivity.
Every client SHOULD start its communication with an upstream node by opening a channel, which is necessary for almost all later communication. The upstream node either passes opening the channel further or has enough local information to handle channel opening on its own (this is mainly intended for v1 proxies). Clients must also communicate information about their hashing power in order to receive well-calibrated job assignments.
| Field Name | Data Type | Description |
|---|---|---|
| request_id | U32 | Client-specified identifier for matching responses from upstream server. The value MUST be connection-wide unique and is not interpreted by the server. |
| user_identity | STR0_255 | Unconstrained sequence of bytes. Whatever is needed by upstream node to identify/authenticate the client, e.g. "braiinstest.worker1". Additional restrictions can be imposed by the upstream node (e.g. a pool). It is highly recommended that UTF-8 encoding is used. |
| nominal_hash_rate | F32 | [h/s] Expected hashrate of the device (or cumulative hashrate on the channel if multiple devices are connected downstream) in h/s. Depending on server's target setting policy, this value can be used for setting a reasonable target for the channel. Proxy MUST send 0.0f when there are no mining devices connected yet. |
| max_target | U256 | Maximum target which can be accepted by the connected device or devices. Server MUST accept the target or respond by sending OpenMiningChannel.Error message. |
# 5.3.3 OpenStandardMiningChannel.Success (Server -> Client)
Sent as a response for opening a standard channel, if successful.
| Field Name | Data Type | Description |
|---|---|---|
| request_id | U32 | Client-specified request ID from OpenStandardMiningChannel message, so that the client can pair responses with open channel requests |
| channel_id | U32 | Newly assigned identifier of the channel, stable for the whole lifetime of the connection, e.g. it is used for broadcasting new jobs by NewExtendedMiningJob |
| target | U256 | Initial target for the mining channel |
| extranonce_prefix | B0_32 | Bytes used as implicit first part of extranonce for the scenario when extended job is served by the upstream node for a set of standard channels that belong to the same group |
| group_channel_id | U32 | Group channel into which the new channel belongs. See SetGroupChannel for details. |
# 5.3.4 OpenExtendedMiningChannel (Client -> Server)
Similar to 5.3.2 OpenStandardMiningChannel, but requests to open an extended channel instead of standard channel.
| Field Name | Data Type | Description |
|---|---|---|
<All fields from OpenStandardMiningChannel> | ||
| min_extranonce_size | U16 | Minimum size of extranonce needed by the device/node. |
# 5.3.5 OpenExtendedMiningChannel.Success (Server -> Client)
Sent as a response for opening an extended channel.
| Field Name | Data Type | Description |
|---|---|---|
| request_id | U32 | Client-specified request ID from OpenExtendedMiningChannel message, so that the client can pair responses with open channel requests |
| channel_id | U32 | Newly assigned identifier of the channel, stable for the whole lifetime of the connection, e.g. it is used for broadcasting new jobs by NewExtendedMiningJob |
| target | U256 | Initial target for the mining channel |
| extranonce_size | U16 | Extranonce size (in bytes) set for the channel |
| extranonce_prefix | B0_32 | Bytes used as implicit first part of extranonce |
# 5.3.6 OpenMiningChannel.Error (Server -> Client)
| Field Name | Data Type | Description |
|---|---|---|
| request_id | U32 | Client-specified request ID from OpenMiningChannel message |
| error_code | STR0_255 | Human-readable error code(s), see Error Codes section below |
Possible error codes:
unknown-usermax-target-out-of-range
# 5.3.7 UpdateChannel (Client -> Server)
Client notifies the server about changes on the specified channel. If a client performs device/connection aggregation (i.e. it is a proxy), it MUST send this message when downstream channels change. This update can be debounced so that it is not sent more often than once in a second (for a very busy proxy).
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identification |
| nominal_hash_rate | F32 | See Open*Channel for details |
| maximum_target | U256 | Maximum target is changed by server by sending SetTarget. This field is understood as device's request. There can be some delay between UpdateChannel and corresponding SetTarget messages, based on new job readiness on the server. |
When maximum_target is smaller than currently used maximum target for the channel, upstream node MUST reflect the client’s request (and send appropriate SetTarget message).
# 5.3.8 UpdateChannel.Error (Server -> Client)
Sent only when UpdateChannel message is invalid. When it is accepted by the server, no response is sent back.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identification |
| error_code | STR0_255 | Human-readable error code(s), see Error Codes section below |
Possible error codes:
max-target-out-of-rangeinvalid-channel-id
# 5.3.9 CloseChannel (Client -> Server, Server -> Client)
Client sends this message when it ends its operation. The server MUST stop sending messages for the channel. A proxy MUST send this message on behalf of all opened channels from a downstream connection in case of downstream connection closure.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identification |
| reason_code | STR0_255 | Reason for closing the channel |
If a proxy is operating in channel aggregating mode (translating downstream channels into aggregated extended upstream channels), it MUST send an UpdateChannel message when it receives CloseChannel or connection closure from a downstream connection.
In general, proxy servers MUST keep the upstream node notified about the real state of the downstream channels.
# 5.3.10 SetExtranoncePrefix (Server -> Client)
Changes downstream node’s extranonce prefix.
It is applicable for all jobs sent after this message on a given channel (both jobs provided by the upstream or jobs introduced by SetCustomMiningJob message).
This message is applicable only for explicitly opened extended channels or standard channels (not group channels).
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Extended or standard channel identifier |
| extranonce_prefix | B0_32 | Bytes used as implicit first part of extranonce |
# 5.3.11 SubmitSharesStandard (Client -> Server)
Client sends result of its hashing work to the server.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identification |
| sequence_number | U32 | Unique sequential identifier of the submit within the channel |
| job_id | U32 | Identifier of the job as provided by NewMiningJob or NewExtendedMiningJob message |
| nonce | U32 | Nonce leading to the hash being submitted |
| ntime | U32 | The nTime field in the block header. This MUST be greater than or equal to the header_timestamp field in the latest SetNewPrevHash message and lower than or equal to that value plus the number of seconds since the receipt of that message. |
| version | U32 | Full nVersion field |
# 5.3.12 SubmitSharesExtended (Client -> Server)
Only relevant for extended channels.
The message is the same as SubmitShares, with the following additional field:
| Field Name | Data Type | Description |
|---|---|---|
<SubmitSharesStandard message fields> | ||
| extranonce | B0_32 | Extranonce bytes which need to be added to coinbase to form a fully valid submission (full coinbase = coinbase_tx_prefix + extranonce_prefix + extranonce + coinbase_tx_suffix). The size of the provided extranonce MUST be equal to the negotiated extranonce size from channel opening. |
# 5.3.13 SubmitShares.Success (Server -> Client)
Response to SubmitShares or SubmitSharesExtended, accepting results from the miner.
Because it is a common case that shares submission is successful, this response can be provided for multiple SubmitShare messages aggregated together.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identification |
| last_sequence_number | U32 | Most recent sequence number with a correct result |
| new_submits_accepted_count | U32 | Count of new submits acknowledged within this batch |
| new_shares_sum | U64 | Sum of shares acknowledged within this batch |
The server does not have to double check that the sequence numbers sent by a client are actually increasing. It can simply use the last one received when sending a response. It is the client’s responsibility to keep the sequence numbers correct/useful.
# 5.3.14 SubmitShares.Error (Server -> Client)
An error is immediately submitted for every incorrect submit attempt.
In case the server is not able to immediately validate the submission, the error is sent as soon as the result is known.
This delayed validation can occur when a miner gets faster updates about a new prevhash than the server does (see NewPrevHash message for details).
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identifier |
| sequence_number | U32 | Submission sequence number for which this error is returned |
| error_code | STR0_255 | Human-readable error code(s), see Error Codes section below |
Possible error codes:
invalid-channel-idstale-sharedifficulty-too-lowinvalid-job-id
# 5.3.15 NewMiningJob (Server -> Client)
The server provides an updated mining job to the client through a standard channel. This MUST be the first message after the channel has been successfully opened. This first message will have min_ntime unset (future job).
If the min_ntime field is set, the client MUST start to mine on the new job immediately after receiving this message, and use the value for the initial nTime.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identifier, this must be a standard channel |
| job_id | U32 | Identifier of the job as provided by NewMiningJob or NewExtendedMiningJob message |
| min_ntime | OPTION[u32] | Smallest nTime value available for hashing for the new mining job. An empty value indicates this is a future job to be activated once a SetNewPrevHash message is received with a matching job_id. This SetNewPrevHash message provides the new prev_hash and min_ntime. If the min_ntime value is set, this mining job is active and miner must start mining on it immediately. In this case, the new mining job uses the prev_hash from the last received SetNewPrevHash message. |
| version | U32 | Valid version field that reflects the current network consensus. The general purpose bits (as specified in BIP320) can be freely manipulated by the downstream node. The downstream node MUST NOT rely on the upstream node to set the BIP320 bits to any particular value. |
| merkle_root | B32 | Merkle root field as used in the bitcoin block header |
# 5.3.16 NewExtendedMiningJob (Server -> Client)
(Extended and group channels only)
For an extended channel:
The whole search space of the job is owned by the specified channel.
If the min_ntime field is set to some nTime, the client MUST start to mine on the new job as soon as possible after receiving this message.
For a group channel:
This is a broadcast variant of NewMiningJob message with the merkle_root field replaced by merkle_path and coinbase transaction prefix and suffix, for further traffic optimization.
The Merkle root is then defined deterministically for each channel by the common merkle_path and unique extranonce_prefix serialized into the coinbase.
The full coinbase is then constructed as follows: coinbase_tx_prefix + extranonce_prefix + coinbase_tx_suffix.
The proxy MAY transform this multicast variant for downstream standard channels into NewMiningJob messages by computing the derived Merkle root for them.
A proxy MUST translate the message for all downstream channels belonging to the group which don’t signal that they accept extended mining jobs in the SetupConnection message (intended and expected behavior for end mining devices).
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | For a group channel, the message is broadcasted to all standard channels belonging to the group. Otherwise, it is addressed to the specified extended channel. |
| job_id | U32 | Server’s identification of the mining job |
| min_ntime | OPTION[u32] | Smallest nTime value available for hashing for the new mining job. An empty value indicates this is a future job to be activated once a SetNewPrevHash message is received with a matching job_id. This SetNewPrevHash message provides the new prev_hash and min_ntime. If the min_ntime value is set, this mining job is active and miner must start mining on it immediately. In this case, the new mining job uses the prev_hash from the last received SetNewPrevHash message. immediately. |
| version | U32 | Valid version field that reflects the current network consensus |
| version_rolling_allowed | BOOL | If set to True, the general purpose bits of version (as specified in BIP320) can be freely manipulated by the downstream node. The downstream node MUST NOT rely on the upstream node to set the BIP320 bits to any particular value. If set to False, the downstream node MUST use version as it is defined by this message. |
| merkle_path | SEQ0_255[U256] | Merkle path hashes ordered from deepest |
| coinbase_tx_prefix | B0_64K | Prefix part of the coinbase transaction* |
| coinbase_tx_suffix | B0_64K | Suffix part of the coinbase transaction |
*The full coinbase is constructed by inserting one of the following:
- For a standard channel:
extranonce_prefix - For an extended channel:
extranonce_prefix + extranonce (=N bytes), whereNis the negotiated extranonce space for the channel (OpenMiningChannel.Success.extranonce_size)
# 5.3.17 SetNewPrevHash (Server -> Client, broadcast)
Prevhash is distributed whenever a new block is detected in the network by an upstream node or when a new downstream opens a channel.
This message MAY be shared by all downstream nodes (sent only once to each channel group). Clients MUST immediately start to mine on the provided prevhash. When a client receives this message, only the job referenced by Job ID is valid. The remaining jobs already queued by the client have to be made invalid.
Note: There is no need for block height in this message.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Group channel or channel that this prevhash is valid for |
| job_id | U32 | ID of a job that is to be used for mining with this prevhash. A pool may have provided multiple jobs for the next block height (e.g. an empty block or a block with transactions that are complementary to the set of transactions present in the current block template). |
| prev_hash | U256 | Previous block’s hash, block header field |
| min_ntime | U32 | Smallest nTime value available for hashing |
| nbits | U32 | Block header field |
# 5.3.18 SetCustomMiningJob (Client -> Server)
Can be sent only on extended channel.
SetupConnection.flags MUST contain REQUIRES_WORK_SELECTION flag (work selection feature successfully declared).
The downstream node has a custom job declared by a trusted external Job Declarator.
The mining_job_token provides the information for the pool to authorize the custom job that has been or will be declared between the Job Declarator and Pool.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Extended channel identifier |
| request_id | U32 | Client-specified identifier for pairing responses |
| mining_job_token | B0_255 | Token provided by JDS which uniquely identifies the Custom Job that JDC has declared. See the Job Declaration Protocol for more details. |
| version | U32 | Valid version field that reflects the current network consensus. The general purpose bits (as specified in BIP320) can be freely manipulated by the downstream node. |
| prev_hash | U256 | Previous block’s hash, found in the block header field |
| min_ntime | U32 | Smallest nTime value available for hashing |
| nbits | U32 | Block header field |
| coinbase_tx_version | U32 | The coinbase transaction nVersion field |
| coinbase_prefix | B0_255 | Up to 8 bytes (not including the length byte) which are to be placed at the beginning of the coinbase field in the coinbase transaction. |
| coinbase_tx_input_nSequence | U32 | The coinbase transaction input's nSequence field |
| coinbase_tx_value_remaining | U64 | The value, in satoshis, available for spending in coinbase outputs added by the client. Includes both transaction fees and block subsidy. |
| coinbase_tx_outputs | B0_64K | Bitcoin transaction outputs to be included as the last outputs in the coinbase transaction |
| coinbase_tx_locktime | U32 | The locktime field in the coinbase transaction |
| merkle_path | SEQ0_255[U256] | Merkle path hashes ordered from deepest |
| extranonce_size | U16 | Size of extranonce in bytes that will be provided by the downstream node |
| min_ntime | OPTION[u32] | TBD: Can custom job ever be future? |
# 5.3.19 SetCustomMiningJob.Success (Server -> Client)
Response from the server when it accepts the custom mining job.
Client can start to mine on the job immediately (by using the job_id provided within this response).
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Extended channel identifier |
| request_id | U32 | Client-specified identifier for pairing responses. Value from the request |
| MUST be provided by upstream in the response message. | ||
| job_id | U32 | Server’s identification of the mining job |
*The full coinbase is constructed by inserting one of the following:
- For a standard channel:
extranonce_prefix - For an extended channel:
extranonce_prefix + extranonce (=N bytes), whereNis the negotiated extranonce space for the channel (OpenMiningChannel.Success.extranonce_size)
# 5.3.20 SetCustomMiningJob.Error (Server -> Client)
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Extended channel identifier |
| request_id | U32 | Client-specified identifier for pairing responses. Value from the request MUST be provided by upstream in the response message. |
| error_code | STR0_255 | Reason why the custom job has been rejected |
Possible errors:
invalid-channel-idinvalid-mining-job-tokeninvalid-job-param-value-{}-{}is replaced by a particular field name fromSetCustomMiningJobmessage
# 5.3.21 SetTarget (Server -> Client)
The server controls the submission rate by adjusting the difficulty target on a specified channel. All submits leading to hashes higher than the specified target will be rejected by the server.
Maximum target is valid until the next SetTarget message is sent and is applicable for all jobs received on the channel in the future or already received with an empty min_ntime.
The message is not applicable for already received jobs with min_ntime=nTime, as their maximum target remains stable.
| Field Name | Data Type | Description |
|---|---|---|
| channel_id | U32 | Channel identifier |
| maximum_target | U256 | Maximum value of produced hash that will be accepted by a server to accept shares |
When SetTarget is sent to a group channel, the maximum target is applicable to all channels in the group.
# 5.3.22 SetGroupChannel (Server -> Client)
Every standard channel is a member of a group of standard channels, addressed by the upstream server's provided identifier. The group channel is used mainly for efficient job distribution to multiple standard channels at once.
If we want to allow different jobs to be served to different standard channels (e.g. because of different BIP 8 (opens new window) version bits) and still be able to distribute the work by sending NewExtendendedMiningJob instead of a repeated NewMiningJob, we need a more fine-grained grouping for standard channels.
This message associates a set of standard channels with a group channel.
A channel (identified by particular ID) becomes a group channel when it is used by this message as group_channel_id.
The server MUST ensure that a group channel has a unique channel ID within one connection. Channel reinterpretation is not allowed.
This message can be sent only to connections that don’t have REQUIRES_STANDARD_JOBS flag in SetupConnection.
| Field Name | Data Type | Description |
|---|---|---|
| group_channel_id | U32 | Identifier of the group where the standard channel belongs |
| channel_ids | SEQ0_64K[U32] | A sequence of opened standard channel IDs, for which the group channel is being redefined |
